Tension Range:
Model ST-5N: Adjustable between 150 – 500 (grams)
Model ST-2N: Adjustable between 60 – 200 (grams)
Model ST-1N: Adjustable between 30 – 100 (grams)

Speed Range:
0 (m/min) to 50 (m/min)

Compatible Package Sizes:
76mm (3”) ID core x 150mm (6”) to 250mm (10”) traverse
94mm ID core x 150mm (6”) to 250mm (10”) traverse
Other sizes available upon request

Max Package Diameter:
250mm

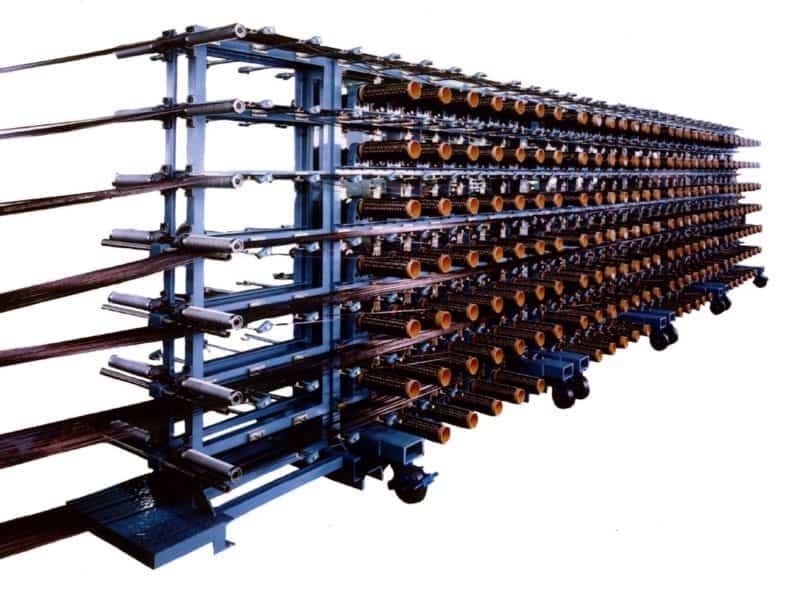

Creel Framework:
Type-1: Steel welded construction: Maximum cost effectiveness
Type-2: Steel bolted construction: For compact shipping
Type-3: Aluminum extrusion construction: For maximum adjustment flexibility and compact shipping
Standard and custom configurations available

Optional Items:
Fiber breakage sensors
Ceramic eyelet or pigtail guides
Mobile creel on casters
Creel outlet combs and redirect rollers

Mounting:
ST tensioning component can be purchased for mounting to existing framework.
