TAQ Data Transmission Modules

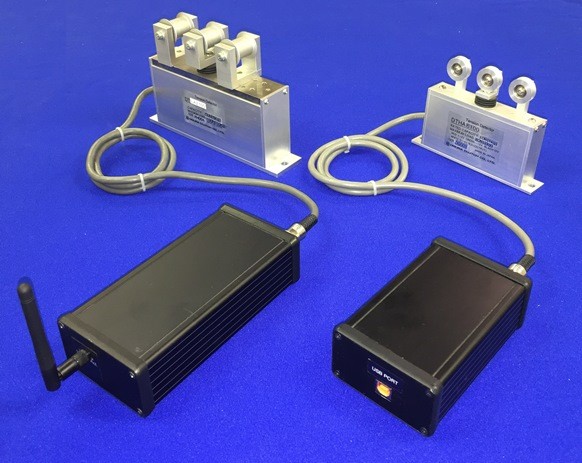

Request Info & PricingTAQ modules provide a means of data transmission to the DTH. The lineup enables various methods to transmit the tension data to a PC for live tension monitoring or tension data logging.
| Model | TAQ3000 | TAQ4000S | TAQ4000U | TAQ4000E | TAQ5000 |
| Analog Input | Single
Ended |
Single
Ended |
Differential | Single
Ended |
Single
Ended |
| Measurement Range | +/- 10V | +/- 10V | +/- 5V | +/- 10V | +/- 10V |
| Display | LED,
3 1/2 Digits |
NA | NA | NA | NA |
| PC Connector | None | DB-9F | USB | RJ-45 | Wireless |
| Communication Type | None | RS-232 | USB 2.0 | Ethernet 802.3 | 802.1b |
| Max Cable Length | NA | 15m | 5m | 100m | NA |
| Power Input Current | 200ma | 50ma | 150ma | 700ma | 1000ma |
Speifications for All Models
Analog Resolution: 12-Bit
Maximum Sampling Rate: 240
Relative Accuracy: 0.25% of FSR
Overvoltage Protection: +/- 20V peak
Power Input Voltage: +5VDC (+/- 0.2 Volts)
Power Connector: 5.5mm long by 2.1mm dia. barrel jack, center positive
Operating Temperature: 0 to 55C (32-131F)
Storage Temperature: -40 to 65C (-40 – 149F)
Humidity: 10% to 90% R.H non-condensing
Enclosure Height: 46mm (1-13/16″)
Enclosure Width: 81mm (3-3/16″)
Enclosure Length: 165mm (6.5″)
Enclosure Weight: 380g (0.84lb)
Enclosure Class: NEMA 1, (IP65, NEMA 12 with optional enclosure kits/gaskets)
